Gas Spring 580 mm DBC with Eyelet or Quick-Type End Fitting – 1 Piece

Gas Spring – 580 mm DBC with Eyelet Ø8.2 mm or Quick-Type End Fitting – 1 Piece

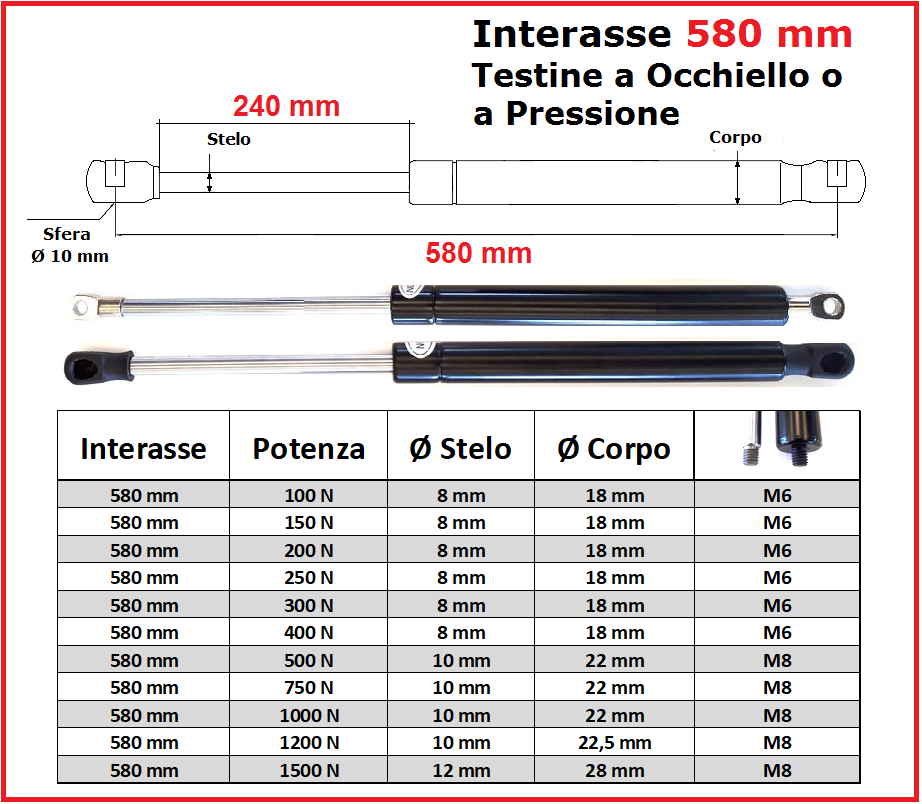

Technical Specifications:

• Distance Between Centers (DBC): 580 mm (fully extended)

• Stroke: 240 mm

• End Fitting Options: Eyelet Ø8.2 mm or Quick-Type end fitting

• Available Force: From 100N to 1500N – suitable for both light and heavy-duty applications

Main Applications:

1. Kitchen cabinets and furniture: Suitable for wide and heavy doors, enabling controlled opening

2. Storage beds: Ensures smooth and secure lifting of large bed frames

3. Large trunks and chests: Eases the operation of bulky and heavy lids

4. Vehicle tailgates: Designed for large and heavy rear hatches

5. Campers and RVs: Perfect for oversized lift-up windows or side access panels

6. Car roof boxes: Assists with opening and closing large and heavy lids

7. Agricultural and industrial machinery: Ideal for large movable panels or protective covers

8. Tipping trailers and containers: Provides safe and stable lifting and dumping support

Sold individually, this gas spring is a dependable choice for both replacements and new installations. For paired systems, it is recommended to replace both gas springs simultaneously to ensure consistent performance.
