Gas Spring 610 mm DBC with Eyelet or Quick-Type End Fitting – 1 Piece

Gas Spring – 610 mm DBC with Eyelet Ø8.2 mm or Quick-Type End Fitting – 1 Piece

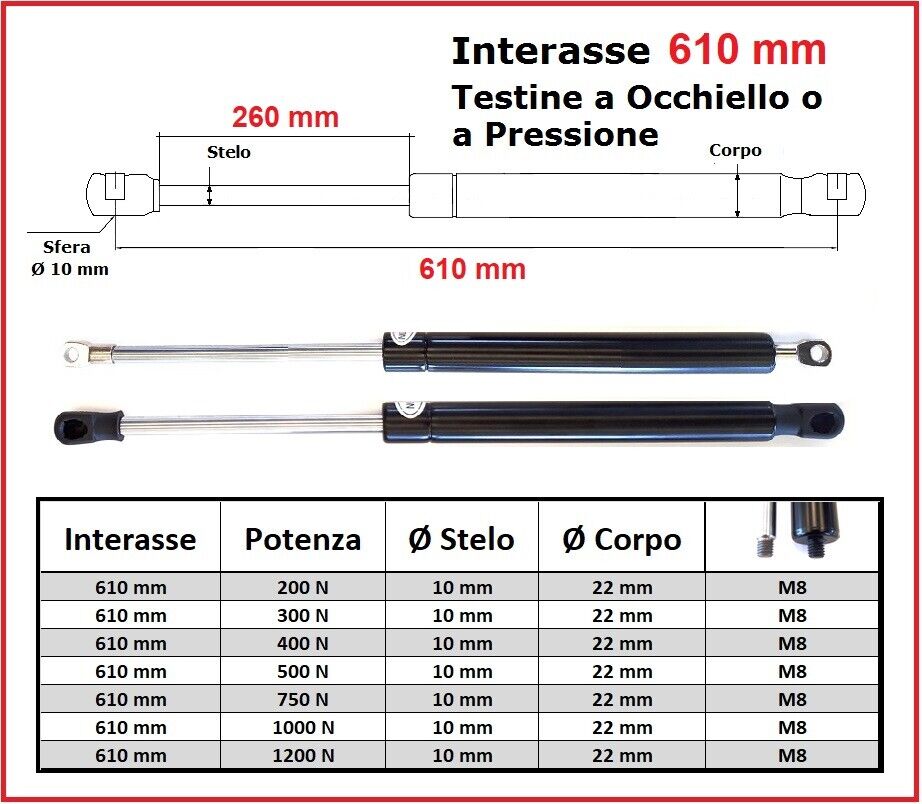

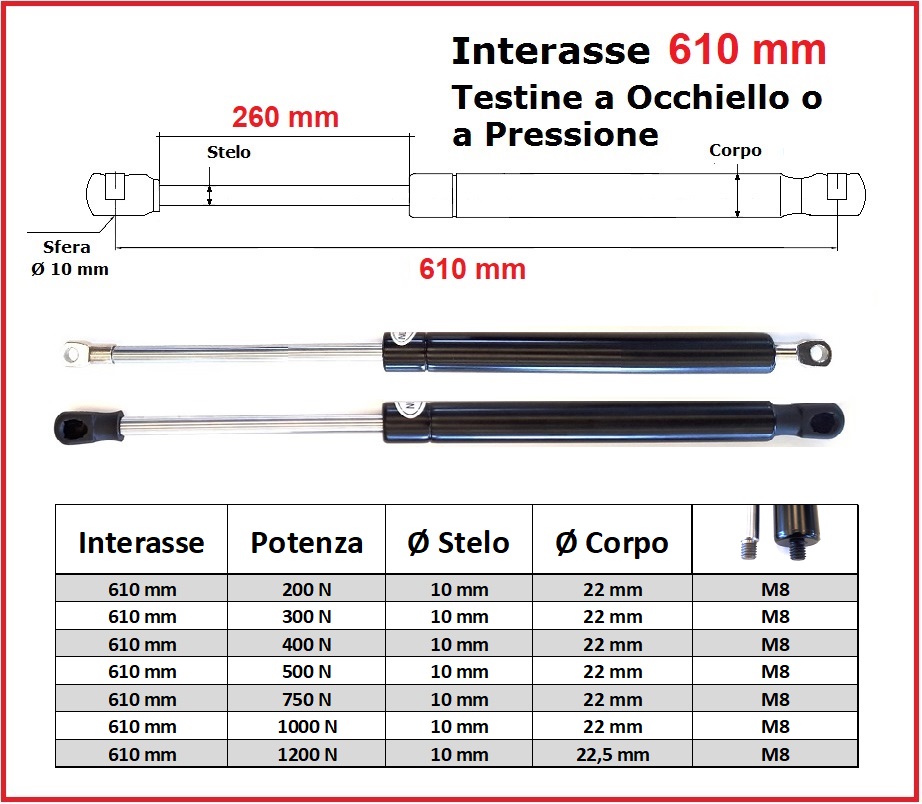

Technical Specifications:

• Distance Between Centers (DBC): 610 mm (fully extended)

• Stroke: 260 mm

• End Fitting Options: Eyelet Ø8.2 mm or Quick-Type end fitting

• Available Force: from 200N to 1200N – suitable for a wide range of load requirements

Main Applications:

1. Kitchen cabinets and furniture: Ideal for wide and heavy doors, ensuring smooth and controlled opening

2. Storage beds: Supports the effortless lifting of large bed frames

3. Large trunks and chests: Facilitates the controlled movement of heavy and bulky lids

4. Vehicle tailgates: Suitable for large and robust rear hatches

5. Campers and RVs: Ideal for oversized lift-up windows or access panels

6. Car roof boxes: Ensures safe and practical opening of heavy lids

7. Industrial and agricultural machinery: Perfect for large mobile covers and access panels

8. Tipping trailers and containers: Provides controlled support during lifting and unloading

Sold individually, this gas spring is a reliable solution for replacements or new installations. For dual-spring systems, replacing both units at the same time is recommended to maintain consistent and safe performance.
